RUIDA RDC6332NM Non-Metal CO2 Laser Controller With Sheet Feeding And Non-Metal Height Control

Name: RUIDA RDC6332NM NonMetal CO2 Laser Controller With Sheet Feeding And NonMetal Height Control
Brand: RUIDA
Price: 1 USD

RUIDA RDC6332NM Non-Metal CO2 Laser Controller With Sheet Feeding And Non-Metal Height Control Manufactures

Brand Name : RUIDA

Model Number : RDC6332NM

Certification : CE FCC ROHS

Place of Origin : Mainland China

MOQ : 50

Price : Negotiable - Inquire Within

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/day

Delivery Time : 5-8 work days

Packaging Details : Carton Packing

Axis : 3

Laser source : High-power CO2 glass tube and RF lasers

Laser channel : 2

Communication : Ethernet, USB and WIFI (optional)

Encryption : Support

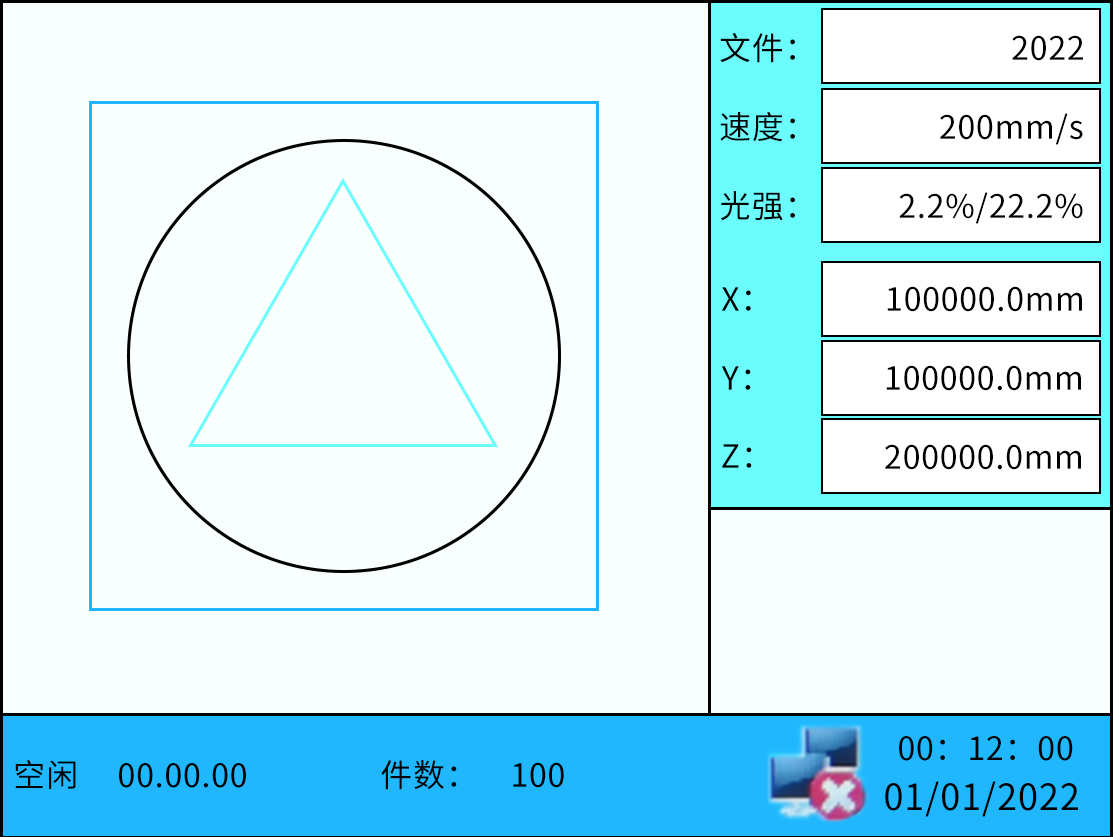

Panel : 3.5”color screen + keys, Linux operating system

Onboard clock : Support

Feeding : Z axis feeding, sheet feeding

Maximum Pulse frequency : 400KHZ

Software : MetalCut

Contact Now

RUIDA RDC6332NM Non-Metal CO2 Laser Controller With Sheet Feeding And Non-Metal Height Control

Discroption of RDC6332NM:

The RDC6332NM is an advanced laser control system designed specifically for processing non-metal materials. It incorporates an innovative automatic height adjustment feature that enables it to handle uneven or varying working surfaces with ease.The RDC6332NM is a sophisticated laser control system that offers automatic height adjustment, powerful CO2 laser technology, and auxiliary gas control. These features make it well-suited for a wide range of cutting applications involving non-metal materials, as well as mixed metal and non-metal cutting tasks.

Key Function Description:

1.High Precision: The RDC6332NM uses a displacement sensor with 0.005mm accuracy and servo precision of 0.01mm.
2.Multi-Axis Control: Supports three motion axes and a dedicated height control axis for non-metal materials.
3.Optional Accessories: Offers a range of optional accessories to enhance functionality.
4.Curved Cutting/Engraving: Primarily focused on non-metal curved surfaces, arcs, and cylinders.

RUIDA RDC6332NM Non-Metal CO2 Laser Controller With Sheet Feeding And Non-Metal Height Control

Software MetalCut(Free)

Suppport image and vetor import. CAD tools. lmage and text processing tools.Support CAM function for laser cutting. Support multi-languages.

RUIDA RDC6332NM Non-Metal CO2 Laser Controller With Sheet Feeding And Non-Metal Height Control

Technical Parameters:

Parameters	RDC6332NM
Laser source	High-power CO2 glass tube and RF lasers
Axis	3
Laser channel	2
Communication	Ethernet, USB and WIFI (optional)
Panel	3.5” color screen + keys, Linux operating system
Feeding	Z axis feeding, sheet feeding
Height control	Non-metal servo control system with high response, integrated high precision laser displacement sensor, detection accuracy of 0.005mm, servo accuracy of 0.01mm, with collision alarm and limit functions.
Encryption	Support
Onboard clock	Support
Firmware	Support the remote upgrade of mainboard and panel program
Cutting	Uneven non-metal cutting

Engraving	Plane engraving, slope engraving and gray engraving
Software	MetalCut, support perforation, lead, bridge and micro connection, RDWorksV8
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, Italian
Size	Panel: L170mmW120mmH38.6mm Mainboard: L220.5mmW134mmH29.6mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note:
1.The system should work with LFS-ANM-T43-V2 height controller.
2.The system adopts high precision displacement sensor. Due to the limit of laser wavelength, it is not suitable for the processing of materials with high reflectance, transparent materials and materials with strong laser absorption for this wave band.

RUIDA RDC6332NM Non-Metal CO2 Laser Controller With Sheet Feeding And Non-Metal Height Control
